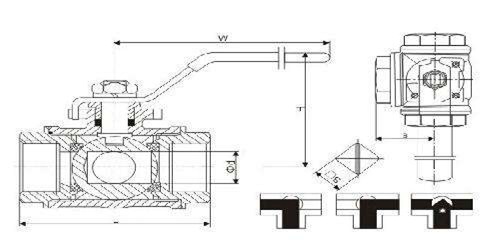

3(three) way ball valve |
| Material: CF8, CF8M, CF3, CF3M, 304, 316, 304L, 316L, WCB, etc. |
| Size: 1/4"-4" £¨ DN6 - DN100 £© |
| Pressure: 1000PSI |
| Connection: Threaded End |
| Packing: Inner packing: plastic packing; |
| Outer packing: plywood case, wooden case |
| Delivery time: 5-60 days or according to |
| customer's requirement |
| |
| |
| |
|
|
|
 |
1 |
The resistance coefficient of the fluid is the same as that of the pipe section of the same length |
2 |
Simple structure, small volume and light weight. |
3 |
Compact and reliable, ball valve sealing materials are widely used in plastic, good sealing, in the vacuum |
| |
system has been widely used. |
4 |
Easy to operate, open and close quickly, from open to close just rotate 90 ¡ã, is advantageous for the |
| |
remote control. |
5 |
Easy maintenance, simple ball valve structure, sealing rings are generally active, easy to disassemble |
| |
and replace. |
6 |
When fully open or fully closed, the sealing surface of the ball and seat is separated from the medium. |
| |
When the medium passes through, it will not cause erosion of the sealing surface of the valve. |
7 |
It can be used from high vacuum to high pressure. |
|
|
|
|
|
